Shaft couplings are essential components in mechanical power transmission. They connect two shafts to transmit torque while accommodating any misalignments and reducing vibration. Choosing the right coupling type is important for optimal performance, efficiency, and longevity in your system.

This comprehensive guide breaks down the main coupling types and offers a closer look at rigid shaft couplings, including the high-performance designs available from Stafford Manufacturing. Whether you’re designing new equipment or replacing existing parts, understanding how each coupling works will help you make a confident, cost-effective choice.

Understanding Shaft Coupling Types

Each type of shaft coupling is engineered to serve a specific purpose. If you’re new to couplings or want a deeper understanding of how they work, check out our blog post: What is a Coupling?. Broadly, these can be grouped into two primary types: rigid couplings and flexible couplings.

Rigid couplings provide a solid, zero-backlash connection between shafts. They are best suited for applications where perfect alignment is maintained and precision torque transmission is required.

Flexible couplings, meanwhile, accommodate slight misalignments, absorb shock, and reduce vibration between rotating shafts. These are ideal for systems that experience movement, heat expansion, or load fluctuations.

Each design has trade-offs between rigidity, flexibility, and ease of maintenance. When precision alignment is achievable, rigid couplings deliver the most reliable and efficient connection.

Here’s a breakdown of all of the common coupling types:

  • Rigid couplings: Offer maximum torque transfer with no flexibility or misalignment compensation.
  • Flexible couplings: Use elastomeric or mechanical elements to allow small angular, axial, or parallel misalignments.
  • Fluid couplings: Transfer torque hydraulically, often used in automotive and heavy machinery.
  • Gear couplings: Allow limited misalignment through meshing gear teeth.
  • Oldham and jaw couplings: Provide smooth torque transmission while absorbing vibration.

Why and When to Choose a Rigid Coupling?

Rigid shaft couplings are used when precise alignment and torque accuracy are non-negotiable. Unlike flexible couplings, they have no moving parts or elastomeric elements. This makes them highly durable and efficient under consistent load.

Choose a rigid coupling when:

Shafts are perfectly aligned and don't need any flexibility.
Shafts are perfectly aligned and don't need any flexibility.
Your system demands zero backlash and high torque transmission.
Your system demands zero backlash and high torque transmission.
You need a compact, maintenance-free solution.
You need a compact, maintenance-free solution.
Equipment operates under steady, predictable loads.
Equipment operates under steady, predictable loads.

Applications for rigid couplings commonly include:

Servo and stepper motor assemblies. Servo and stepper motor assemblies.

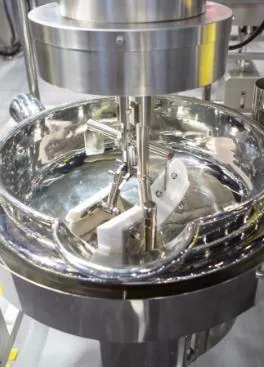

Machine tools and CNC equipment. Mixing Equipment and Food Processing
Pumps, compressors, and generators. Pumps, compressors, and generators.
Precision test stands and instrumentation. Precision test stands and instrumentation.

Rigid couplings are not recommended when shafts are misaligned or subjected to thermal expansion, but for most precision applications, they offer unmatched stability and control.

Before selecting a rigid coupling, review the common mistakes engineers make.

Advantages of Rigid Couplings

Full torque transfer

No energy loss through flexing or cushioning.
Simple installation

Minimal components and quick clamping mechanisms.
High concentricity

Maintains shaft alignment and balance.
Durability

Long lifespan with minimal maintenance.

Exploring Stafford Manufacturing's Rigid Shaft Couplings

Stafford Manufacturing specializes in precision-machined, rigid couplings that are specially designed for performance, reliability, and ease of installation. Each coupling is produced from high-quality materials and engineered for precise fit and balance.

Below is a detailed look at the rigid coupling types available from Stafford Manufacturing.

Coupling TypeKey AdvantageCharacteristics/FeaturesMaterial Options
One-piece split clamp coupling
High concentricity and torque capacitySingle-piece design clamps evenly around the shaft for precise alignment; easy to install and removeAluminum, steel, stainless steel
Two-piece split clamp coupling
Easy installation without shaft removalTwo halves fasten with cap screws for a secure fit; allows coupling installation without disassembling adjacent componentsAluminum, steel, stainless steel
Three-piece split clamp coupling
Excellent balance and flexibility in assemblyCenter sleeve and two clamping hubs for easy component changes; ideal for frequent maintenanceAluminum, steel
Precision sleeve coupling
Tightest tolerance among rigid couplings, maintaining up to .001" T.I.R.Precision cylindrical sleeve design; best for permanent, tightly aligned shaftsSteel, stainless steel
Square and hex bore coupling
Secure grip on non-round shaftsDesigned for power transmission in machinery using square or hex shafts; provides reliable torque transferSteel, stainless steel

Types of Shaft Adapters

One-Piece Split Clamp Couplings

The one-piece split clamp coupling is ideal for high-torque applications that call for precise alignment. It delivers superior holding power while maintaining perfect concentricity. The single-piece body design eliminates backlash and ensures smooth power transmission.

Ideal for: Motor and gearbox assemblies, test stands, and motion control systems.

View Products
One-Piece Split Clamp Couplings

Two-Piece Split Clamp Couplings

Two-piece split clamp couplings provide all the advantages of a rigid connection with the added convenience of easy installation. Because the coupling splits into two halves, it can be mounted or removed without sliding over the ends of the shafts, which can be a significant benefit during maintenance or retrofits.

Ideal for: Machinery with limited access or assemblies requiring frequent adjustments.

View Products
Two-Piece Split Clamp Couplings

Three-Piece Split Clamp Couplings

Three-piece designs are really versatile because they are modular. The center sleeve connects two hubs, which allows users to remove or service components without disturbing shaft alignment. This modular design also enhances balance and reduces assembly time.

Ideal for: Precision systems that require regular maintenance or component swaps.

View Products
Three-Piece Split Clamp Couplings

Precision Sleeve Couplings

Precision sleeve couplings have the tightest tolerances of our rigid couplings, featuring a solid center section for a close fit on ground shafting, an integrated keyway, and Stafford’s Accu-Clamp™ design with self-centering collars. They maintain <.001″ TIR concentricity for precise alignment and high, non-marring clamping power.

Ideal for: Precision alignment in permanent or high-accuracy shaft connections.

View Products
Precision Sleeve Couplings

Square & Hex Bore Couplings

These specialized rigid couplings provide positive engagement for square or hexagonal shafts, ensuring slip-free torque transfer. Stafford’s precision machining guarantees a perfect fit and alignment for non-round configurations.

Ideal for: Power transmission systems, food processing, conveying, and custom industrial machinery.

View Products
Square & Hex Bore Couplings

Rigid Shaft Coupling Configurator

Design custom 1-, 2-, or 3-piece rigid couplings. Select bore size, keyway, material, screw, and finish, view part drawings, and get a quote – available in inch or metric sizes.

Launch Configurator

Partner with Stafford Manufacturing for Precision Shaft Couplings

For over 50 years, Stafford Manufacturing has been a trusted source of precision-engineered shaft collars, couplings, and mechanical components. Every rigid coupling is manufactured in the USA using premium materials and inspected for exacting tolerances to ensure consistent, repeatable performance.

When you partner with Stafford, you gain:

Proven quality
Proven quality

ISO-certified manufacturing and in-house machining for maximum precision.
Customization options
Customization options

Special bore sizes, keyways, and materials to meet unique application requirements.
Expert guidance
Expert guidance

Application engineers are available to help you select the right coupling type for your design.
Fast delivery
Fast delivery

Quick-turn production and stocked inventory for many coupling configurations.

Stafford Manufacturing is dedicated to supporting engineers, designers, and OEMs in achieving reliable power transmission across all applications. Whether you need a standard rigid coupling or a custom solution, Stafford delivers quality you can count on, part after part.

To learn more, explore our rigid shaft couplings catalog, or get in touch with us to talk about your specific needs.
