Flanged Shaft Collars and Other Mounting Components

At Stafford Manufacturing, we manufacture and distribute a broad selection of products suitable for use in power transmission, motion control, automation, and other original equipment manufacturer (OEM) and maintenance, repair, and operations (MRO) applications. One of our core product offerings is a full range of flanged shaft collars and other mounting components

Browse Online Catalog
Flanged Shaft Collars and other Mounting Components

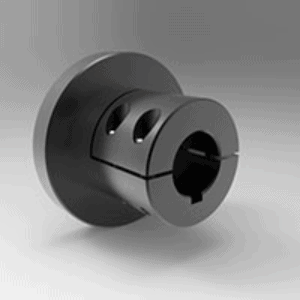

Accu-Flange™Collars

Accu-Flange Collars can be configured by users to perform various operations, including mounting devices, cams, or pulleys. This machineable flange collar features a standard keyway and an integral clamp that incorporates a relief groove and double-split design. Available in aluminum, stainless steel, and steel materials, the Accu-Flange Collar allows users to quickly develop custom solutions from a standard product line.

View Products
Accu-Flange™Collars
Accu-Flange Collars

Accu-Flange Collars are machinable collars similar in many respects to our shaft mounting collars but without predrilled holes, allowing for full customization of the flange by the customer.

They feature a standard keyway and integral clamp that provides a high-strength, non-marring hold. Applications include use in cam, pulley, and component mounting devices.

If needed, users can customize the standard product to unique specifications to meet precise application requirements.

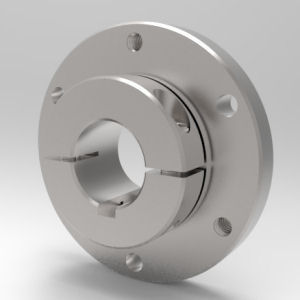

Accu-Flange™ Shaft Mounting Collars

Accu-Flange mounting collars are machinable flange collars that feature a standard keyway with three through holes and three tapped holes and an integral clamp design and relief groove mechanism. They’re also available in metric.

These easy-to-adjust components maintain perpendicularity to <0.001 TIR, allow for the attachment of gears, pulleys, and sprockets without the need for welding, and eliminate the risk of shaft damage. They are suitable for use in a wide range of applications, including in cam, pulley, and component mounting devices.

For users with unique needs, standard Accu-Flange shaft mounting collars accommodate use in custom solutions as the individual parts can be machined to highly specific dimensions upon customer request.

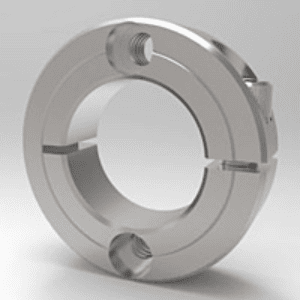

One-Piece Split Face Mounting Shaft Collars

One-Piece Split Face Mounting Shaft Collars feature universal tapped mounting holes, enabling several mounting options. Available in both metric and standard configurations, these shaft collars are ideal for use on hard or soft standard round shafts as well as over a split hub or on a thin wall tube. One-Piece Clamp-Type Shaft Collars are easy to adjust, precision machined, and provide high clamping power.

View Products
One-Piece Split Face Mounting Shaft Collars

Accu-Mount Collars

The Accu-Mount™ Collar from Stafford Manufacturing includes one solid, square and flat side with four holes for component mounting, as well as a centering hub and a second side that allows for secure clamping to a shaft. This collar offers a rigid and square mounting method for lever arms, pulleys, gears, sprockets, and similar components. Additionally, they prevent wobbling and slippage and can be easily repositioned on a shaft.

View Products
Accu-Mount<sup™</sup data-lazy-src=

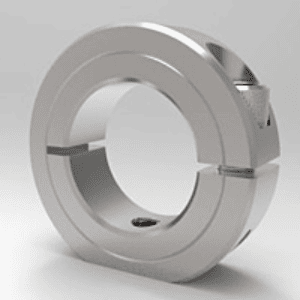

Weldable Shaft Collars

Weldable Shaft Collars are lead-free and made from 1018 steel for safety and ease when welding. They feature a smooth bore to protect shafts from damage, offer superior holding power, and can be placed anywhere on the shaft (two-piece configurations). Depending on your needs, we offer One-Piece Split and Two-Piece Split configurations, as well as options with keyways.

View Products
Weldable Shaft Collars
Standard Weldable Shaft Collars

Standard Weldable Shaft Collars are made of steel and available in bore sizes ranging from 1/4 inches to 2 inches.

One-Piece Split Weldable Shaft Collars

  • Smooth bore protects shafts from damage
  • Low profile type
  • Excellent holding power over set-screw type collars
  • Non-marring and easy to adjust

Learn More

Two-Piece Split Weldable Shaft Collars

  • Can be disassembled and placed anywhere on the shaft
  • Non-marring and easy to adjust
  • Excellent holding power over set-screw type collars
  • Low profile type

Learn More

Metric Two-Piece Split Weldable Shaft Collars

  • Can be disassembled and placed anywhere on the shaft
  • Non-marring and easy to adjust
  • Excellent holding power over set-screw type collars
  • Low profile type

Learn More

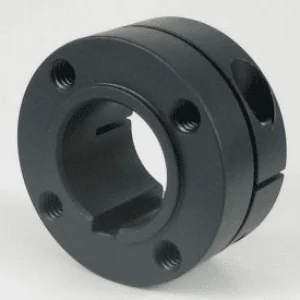

Two-Piece Split Weldable Shaft Collars with Keyways

Two-Piece Split Weldable Shaft Collars are available in both standard and metric options and in bore sizes ranging from 3/4 inches to 2 inches (standard) or 20 mm to 80 mm (metric).

Feature

  • Can be placed anywhere on a shaft
  • Excellent holding power over set-screw type collars
  • Available with and without keyways
  • Non-marring and easy to adjust

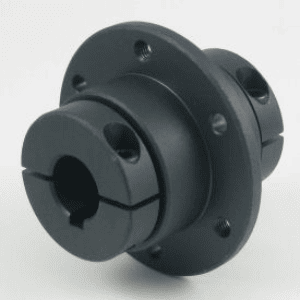

Precision Sleeve Flange Couplings

Our precision sleeve flange couplings are one-piece units used to mount components, such as gears, motors, or brake assemblies. Their design features a flange with three through holes and three tapped holes, a solid center section constructed for a close tolerance fit on ground shafting, and integral self-centering clamping collars at both ends to facilitate easy assembly and disassembly. They offer high-strength, non-marring attachment with precise and easy-to-adjust alignment.

View Products
Precision Sleeve Flange Couplings

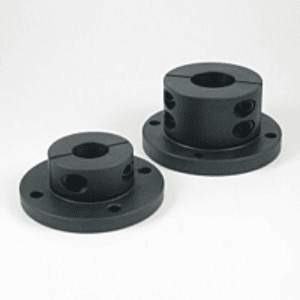

Flanged Shaft Mounts

Flanged Shaft Mounts are used in conveyors, packaging equipment, lab equipment, and other applications. The two-piece design lets you quickly remove the top of the support for easy access to the shaft. Available from stock in 1117 steel, Flanged Shaft Mounts come in 1/4” to 2” I.D. sizes. Bore sizes 1″ and larger have four clamping screws. Suitable for a variety of applications, they are also offered in stainless steel on special order. Keyways are also available for special order

View Products
Flanged Shaft Mounts

Mounting Collars for Shafts

Shaft Mounting Collars are used to mount shafts to components or surfaces. Available in steel and stainless steel materials, these collars are ideal for use on hard or soft standard round shafts as well as over a split hub or on a thin wall tube. Depending on your needs, they come in One-Piece Split, Two-Piece Split, or Hinge configurations, and they can also be stackable.

View Products
Mounting Collars for Shafts
One-Piece or Two-Piece Split - Stackable (Cap) Shaft Mounting Collars

Stackable Shaft Mounting Collars feature one or more flats on the outside surface that are drilled or tapped for attachment to each other or to a surface/component.

One-Piece Split - Stackable (Cap) Shaft Mounting Collars

  • Smooth bore protects the shaft from damage
  • Features a flat and a countersunk, tapped hole for easy mounting to a component or surface
  • Steel or stainless steel construction
  • Non-marring, high clamping power, and easy to adjust

Two-Piece Split - Stackable Shaft Mounting Collars

  • Supplied with a mounting screw
  • Features drilled and tapped flats on the outside surface to allow for attachment to each other
  • Easy to open and adjust
  • Steel or stainless steel construction
Shaft Mounting Collars Two-Piece Split Clamp-Type Stackable

Two-piece Split Clamp-Type Shaft Mounting Collars feature a two-piece construction with flats on the outside surface that are tapped and drilled to allow them to attach to each other.

Features

  • Features countersunk hole for hanging from a threaded rod or mounting to any surface
  • Stackable, easy to open, and easy to adjust
  • Steel or stainless steel construction
  • Available in the Stackable version (flats on two surfaces) and the Stackable (Cap) version (single flat)
Hinge Shaft Mounting Collars

Hinge Shaft Mounting Collars are ideal where fast operation is required, such as situations where space and time are of concern or applications in hostile environments.

Features

  • Features a flat and a countersunk, tapped hole for easy mounting on surfaces or components, or hanging from a threaded rod
  • Eliminate lost screws, fumbling, and wasted time
  • Smooth bore that will not damage shafts
  • Provide the same axial holding power as standard collars

Mounting Collars for Pipes

Pipe Mounting Collars are used to mount pipes to components or tubes. These collars feature bores that match the outside diameter (OD) of a standard pipe as well as flats to make them stackable. Available in steel or stainless steel constructions, these collars can be quickly taken apart and repositioned anywhere on a shaft. Depending on your needs, we offer Two-Piece Split – Stackable, Two-Piece Split – Stackable (Cap), and Hinge configurations.

View Products
Mounting Collars for Pipes
Two-Piece Split - Stackable Pipe Mounting Collars

The Two-Piece Split – Stackable Pipe Mounting Collar features a two-piece construction with flats on two surfaces for stacking.

Features

  • Flats are tapped and drilled for attachment to each other
  • Features a countersunk hole for hanging from a threaded rod or mounting to any surfac
  • Easily disassembled and placed anywhere on a shaft
  • Supplied with a mounting screw
Two-Piece Split - Stackable (Cap) Pipe Mounting Collars

The Two-Piece Split – Stackable (Cap) Pipe Mounting Collars have a single flat and a rounded outside surface when no further stacking is needed.

Features

  • The flat is tapped and drilled for attachment to each other
  • Supplied with a mounting screw
  • Features a countersunk hole for hanging from a threaded rod or mounting to any surface
  • Easily disassembled and placed anywhere on a shaft
Hinge Pipe Mounting Collars

A Hinge Pipe Mounting Collar functions similarly to a two-piece collar, but it works as a single unit.

Features

  • Eliminates lost screws, fumbling, and wasted time
  • Offers the same axial holding power as standard collars
  • Features a flat with a countersunk, tapped hole for hanging from a threaded rod or easy mounting on a surface or component
  • Perfect for applications requiring fast operation

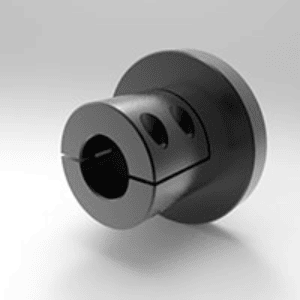

Flange Adapter Max

The Flange Adapter Max has a solid flange end and finished clamping end that can be machined to user specifications to perform various functions. Its Two-Piece design facilitates easy access to the shaft. Additional options include custom centering hubs, cam profiles, indexers, bolt-hole patterns, and more. The Flange Adapter Max is available in stainless steel and steel constructions with bore sizes ranging from 1/2 inch to 1 inch.

View Products
Flange Adapter Max

Flange Adapter Max with Keyways

The Flange Adapter Max with Keyways has a solid flange end and finished clamping end with a standard keyway that can be easily machined to perform different functions. The keyway adds fixed shaft phasing and greater torsional holding power, and the Two-Piece design enables easy access to the shaft. Additional options include custom centering hubs, cam profiles, indexers, bolt-hole patterns, and more. It is available in stainless steel and steel constructions with bore sizes ranging from 1/2 inch to 1 inch.

View Products
Flange Adapter Max with Keyways

Advantages of Our Flanged Shaft Collars

Our flanged shaft collars are one-piece shaft mount solutions that can be custom configured to accommodate a wide range of applications. Their split design featuring a smooth bore and keyway and relief groove clamping mechanism eliminates the risk of damaging the shafts without sacrificing hold strength. They are available with standard or custom hole patterns and slots, up to 10-inch OD flanges and 6-inch ID bores, and a range of material options—including aluminum, stainless steel, steel, and plastic—to suit different application environments.

Compared to other flanged shaft collars in the market, ours offers:

  • Broader secure attachment capabilities without the need for welding
  • Lower risk of shaft damage
  • Greater customizability for unique user specifications

Contact The Experts For Flanged Shaft Collars

Equipped with nearly 50 years of industry experience, the team at Stafford Manufacturing has the skills and knowledge needed to create high-quality industrial products. One of the products that culminated from this experience is our flanged shaft collars, available in standard and custom solutions. They are priced accordingly based on the material, size, configuration, and quantity requested. For additional information on our product offerings or a quote on pricing, request a free quote today.
